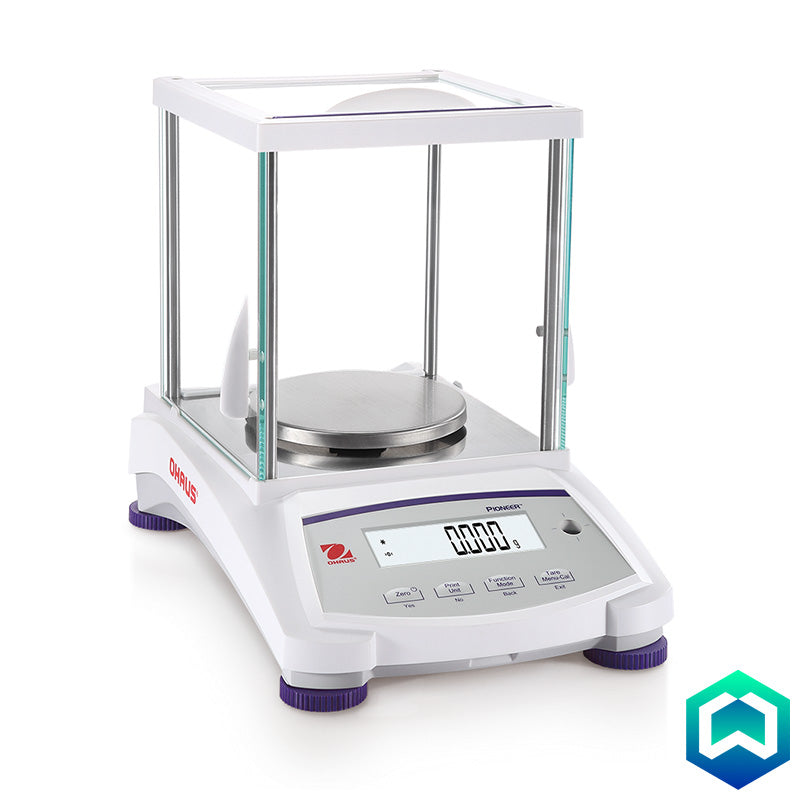

Ohaus -PJX Carat Jewellery Balance - Angle

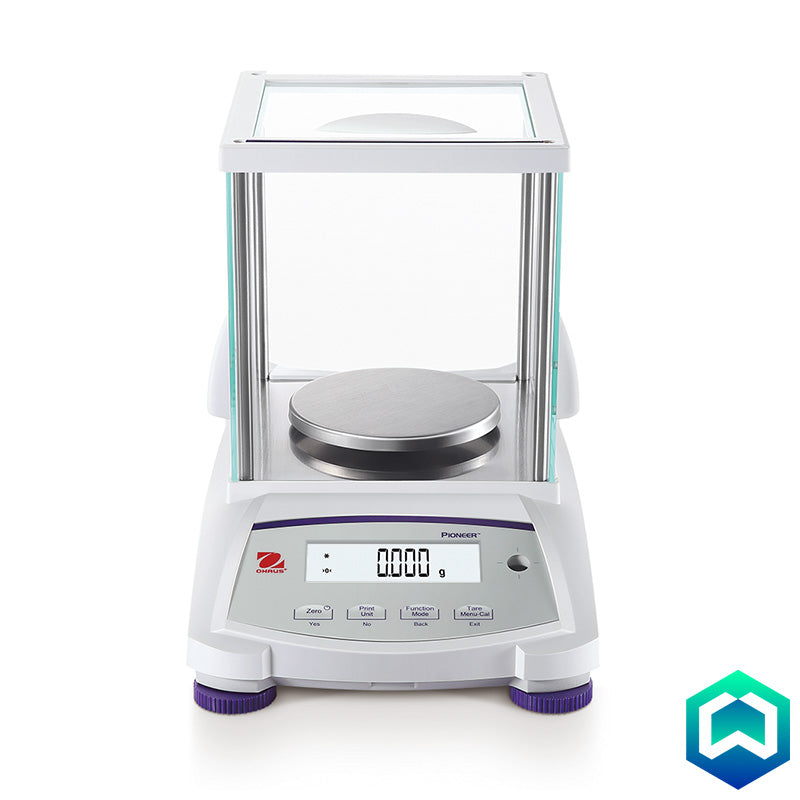

Ohaus -PJX Carat Jewellery Balance - Front
Ohaus -PJX Carat Jewellery Balance - Back

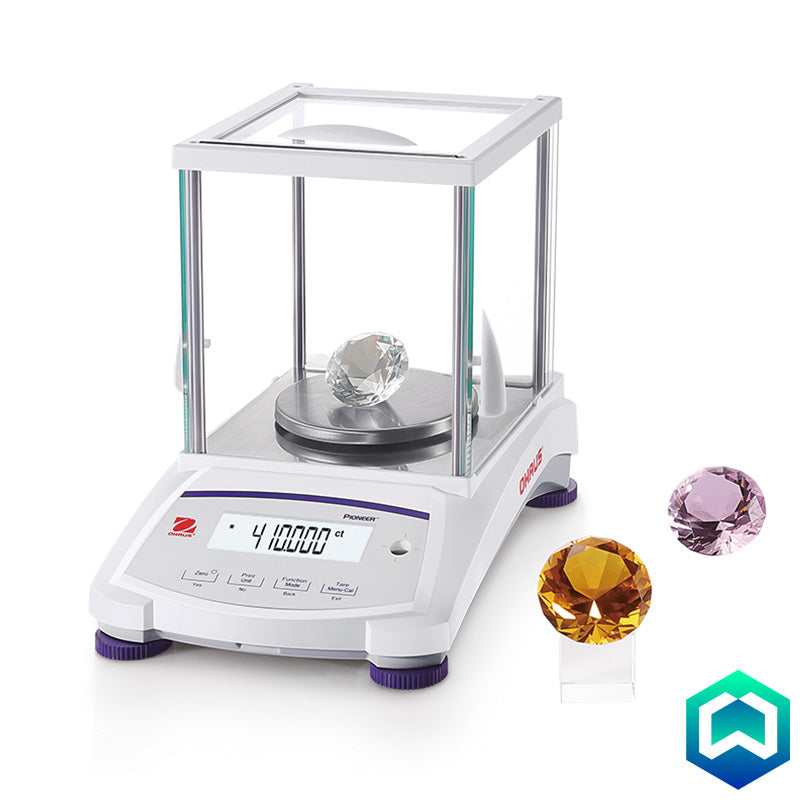

Ohaus -PJX Carat Jewellery Balance - Action

Ohaus PJX Carat Series Jewellery Balance‏‏‎

By Ohaus

The Ohaus PJX Carat is a precision scale designed specifically for weighing precious metals and gemstones. With its high-precision weighing capabilities, it ensures accurate measurements of even the smallest and most valuable items. The scale offers a range of capacities and readabilities to cater to different jewellery applications, providing flexibility for users.

Trade Approved:
Internal Calibration:
Capacity and Readability:
£724.00 £965.00
Product Information

Features:

  • Precision weighing: Delivers accurate results for a wide range of applications, including basic weighing, parts counting, percent weighing, and density determination.
  • Space-Saving Draft Shield: The innovative draft shield design minimises footprint and offers ample space for sample placement, enhancing user experience and accessibility.
  • Auxiliary display: Added display (not included) enables simultaneous viewing of results, enhancing efficiency and transparency.
  • Built-in adjustment system: Ensures ongoing accuracy without manual calibration.
  • User-friendly interface: Offers customizable settings and features for tailored operation, including user-selectable environmental filters, brightness settings, auto-tare, auto-dim, and more.
  • Durable construction: Built to last with a metal base and plastic top housing, ensuring long-term reliability.
  • Versatile connectivity: Equipped with an RS232 interface and Mini-Din port for easy integration with other devices and systems.

Built-in Application Modes:

  • Weighing - Determines the weight of items on the pan in the selected unit of measure.
  • Parts Counting - Counts the number of pieces on the pan using uniform weight.
  • Percent Weighing - Measures the weight of a sample displayed as a percentage of pre-established reference weight.
  • Density Determination - Determine density of solids more dense than water, solids less dense than water, liquids, or porous material.

Compliance:

  • Metrology (PR...M…models only): OIML R76; EN 45501
  • Product Safety: IEC/EN 61010-1; CAN/CSA C22.2 61010-1; UL 61010-1
  • Electromagnetic Compatibility: IEC/EN 61326-1 Class B, Basic Environments; FCC Part 15 Class A; Canada ICES-003 Class A
  • Compliance Marks: CE; CSA
Specification

Display: Backlit Liquid Crystal Display (LCD)

Construction: Metal base, plastic top housing, removable stainless steel pan, removable glass draft shield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover.

Platform Dimensions:

  • Ø90 mm
  • Ø120mm

Power Requirement: AC Adapter (included)
Downloads

Please click here for the Ohaus PJX Carat Series datasheet.
